| ROTARY HEAD - RPT SERIES |
-Application in cleaning pipes of 60 mm to 305 mm. -Made of stainless steel. -Speed control rotation by means of viscous fluid. -Replaceable nozzles of 1/4" or 1/8". -It works with 2, 4 or 6 balance jets. |
 |
 |
 |
 |
| RPT 043-P2-7 Head | |||

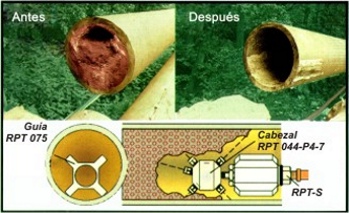

RPT 075 Guide A single plastic piece. It protects the head of the scratches. For pipes of Ø75 or 115 mm |
|||
RPT 070 Guide Replaceable plastic skids for diameters of 100, 125, 150, 200 or 300mm |
|||
 |
Model | RJV (without head) | |
| Length overall | 150 mm | ||
| Weight without head | 1,9 Kg | ||
| Maximum pressure | 1.500 bar | ||
| Fast Speed rotation | 50-250 rpm | ||
| Slow Speed rotation | 15-60 rpm | ||
| Max. Flow | 230 l/min | ||
| Inlet thread | 1/2" NPT, 9/16" MP, M24 | ||
| Outlet thread | 1/8", 1/4" NPT | ||
| Head | RPT 043-P2-6 | RPT 044-P4-6 | |
| Diameter | 51 mm | 64 mm | |
| When ordering please indicate, pressure, flow, hose diameter and length. | |||
